A Beginner's Guide to setting up a Rainwater Harvesting System.
Rainwater harvesting involves collecting and storing rainwater for reuse rather than allowing it to flow and be absorbed into the earth or channelled into drains, streams, or rivers. It is one of the simplest ways to save home water while simultaneously cutting your utility expenses. Harvesting rainwater is a sensible and ecological decision, whether you choose a custom-designed system or a basic rain barrel collecting technique.
Rainwater collection is acquiring increased importance as the effects of the climate crisis worsen and portions of the world face drier and longer droughts, groundwater depletion, and freshwater contamination from saltwater inundation. Rainwater collection supplies fresh water in areas where water is scarce, dirty, or only available seasonally. Moreover, rainwater collection and storage can be a less expensive alternative (compared to desalination or piping water over great distances) to ensure safe, clean water for drinking, residential use, gardening, livestock watering, and agriculture.
While there are several modern rainwater collection methods, rainwater collection is an old tradition. Anthropologists think that the ability to catch and retain water accompanied the rise of agriculture, particularly in arid regions. Cisterns for storing rainwater were discovered in Neolithic towns, and by 2500 BC, they could be found in what is now Israel and the Greek island of Crete, as well as in the Roman Empire, Istanbul, and even Venice.
Benefits of Harvesting Rainwater
Rainwater has several advantages over municipal tap water in a variety of applications.
- Conservation: Water is a restricted resource in many world regions, with demand exceeding availability. Utilizing rainwater protects and conserves natural resources such as rivers and streams while reducing demand for public services.
- Price: Rainwater is free. Complicated and potable systems need substantial investment, resulting in a cheaper utility cost for the ordinary homeowner.
- Neutral pH: Because rainwater is gentle and neutral pH, it is perfect for personal hygiene, washing, and cleaning. It is less corrosive than hard water and can help equipment last longer.
- Pollutant-free: Rainwater contains no artificial chemicals or toxins, making it healthier for plants. Unlike municipal systems, it lacks disinfection by-products, salts, minerals, and pollutants.
- Reduces stormwater runoff: Because water is collected and stored, less water is sent into storm drains, reducing floods and the spread of groundwater contaminants.
Types of Rainwater Collection
The storage and distribution equipment required determines the types of rainwater gathering. Collecting rainwater for personal use is as simple as placing a bucket outside.
Rooftop rain water harvesting
The rain that falls on top of the roof is collected using a gutter and then diverted to a storage tank using a filter. This approach is straightforward and an excellent starting point for households that wish to capture rainwater for indoor and outdoor activities such as watering plants, cleaning, and personal hygiene.
A catch basin, such as a rain barrel, is installed beneath a building downspout to collect and store rainwater.
'Rainy' Dual Intensity Filters operate efficiently regardless of rainfall intensity and offer self-cleaning capabilities. Our filters are industry leaders in rooftop rainwater harvesting due to their low cost and high quality.

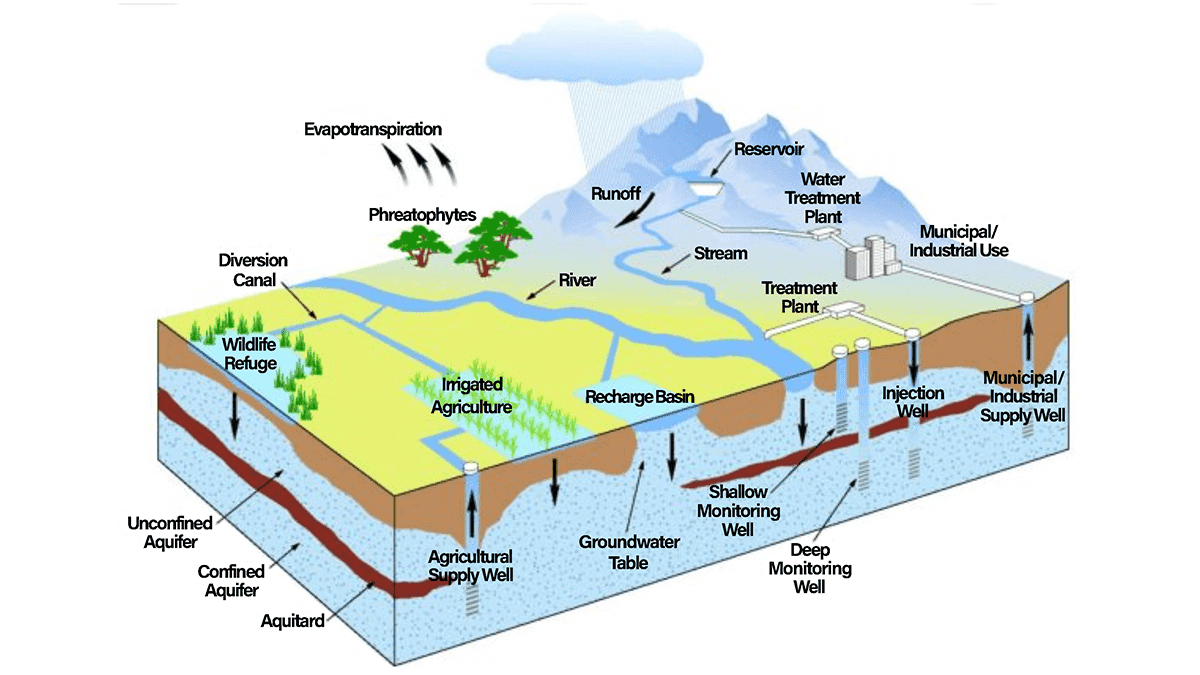

Groundwater Recharge
A groundwater recharge system collects rainfall runoff at ground level. It is more complicated and necessitates the initial construction of a storage tank (often a cistern or reservoir), a pump, and distribution equipment such as pipes.
Rainy has invented a novel groundwater recharge method known as the 'V-wire injection well' technology. This enables the replenishment of the groundwater table at a very high speed when compared to conventional groundwater recharge, reducing water shortages.
How Much Water Can You Collect?
If you want to install a rainwater collection system, follow these simple steps: When acquiring a rainwater harvesting system, you should assess your rainwater collecting capacity since it will influence several aspects, including the size of your rainwater tank. The Federal Energy Management Programme calculates the total amount of water gathered by rainwater collecting devices using the following formula: Catchment area (roof floorspace) x monthly rainfall (inches) x conversion factor (0.62) x collection factor (75%–90% to account for system losses) With an average monthly rainfall of 3 inches and a collection factor of 75%, the total water catchment for a 1,000-square-foot roof would be: 1,000 3 x 0.62 x 75% = 1,395 litres each month, or 16,740 litres per year (minimum) Rainwater harvesting potential is computed by multiplying your catchment area (the surface area suitable to capture rainwater) by your average yearly precipitation. For Example, 100 m2 (catchment area) x 1500mm per year (rainfall) = 150 m3.(Because of the high quantities of filth and oil, the ground area is not deemed a suitable catchment.)
How It Works: Capture, Store, Reuse
The most basic rainwater harvesting systems involve a means of collecting rain (which might be as simple as a house's roof), a means of directing the water (such as a gutter and downspout), and a location to store the water (like a barrel). Water collected from a system this simple would only be acceptable for basic applications like watering a garden, fire suppression, or as grey water—like toilet bowl water—due to the absence of filtering and sufficient storage.

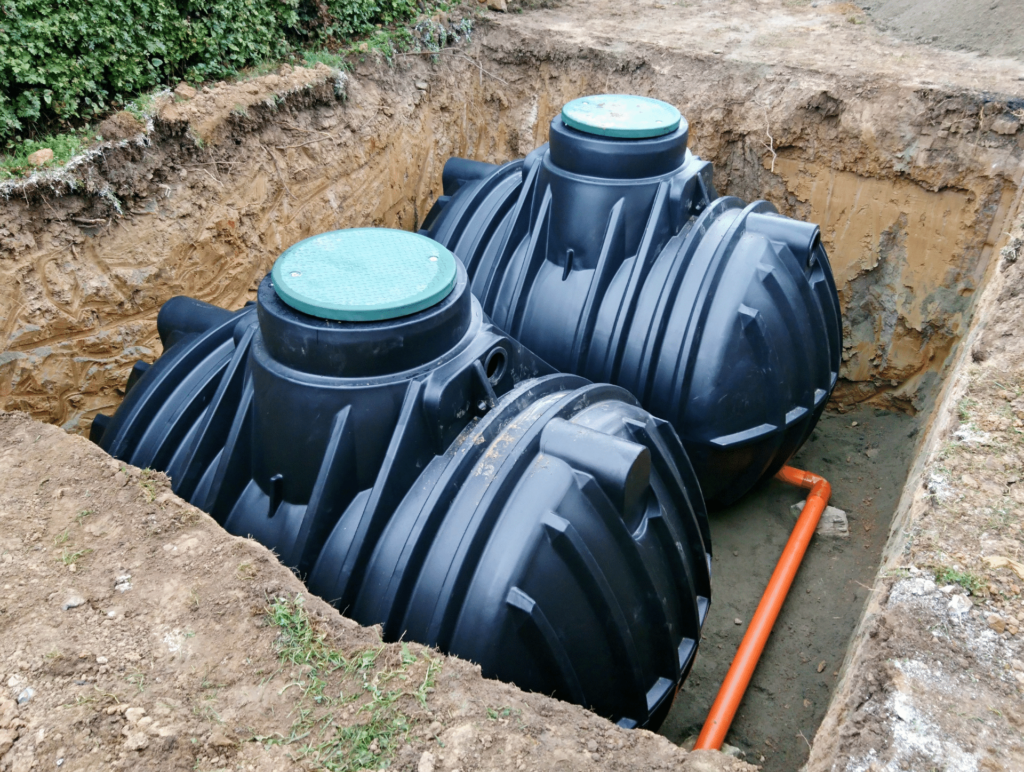

A suitable storage tank (2,500 litres, 3,500 litres, 4,500 litres (standard and shallow profiles are available), plus 6,000 litres). Many people prefer shallow tanks because they require less excavation and are easier to maintain. A more elaborate system would contain a collecting system and multiple layers of filters to keep dirt and debris out of the water supply. Tanks should be designed to properly manage overflow water and constructed of materials that will not leach into the water and discourage bacteria development. That container should then be connected to a control system that may further filter the water for drinking-level purity if necessary, or at least to a water level monitor. Lastly, a pump to guide water, a flow metre, and a backflow prevention system would be required, all of which would need to be connected to a power supply.

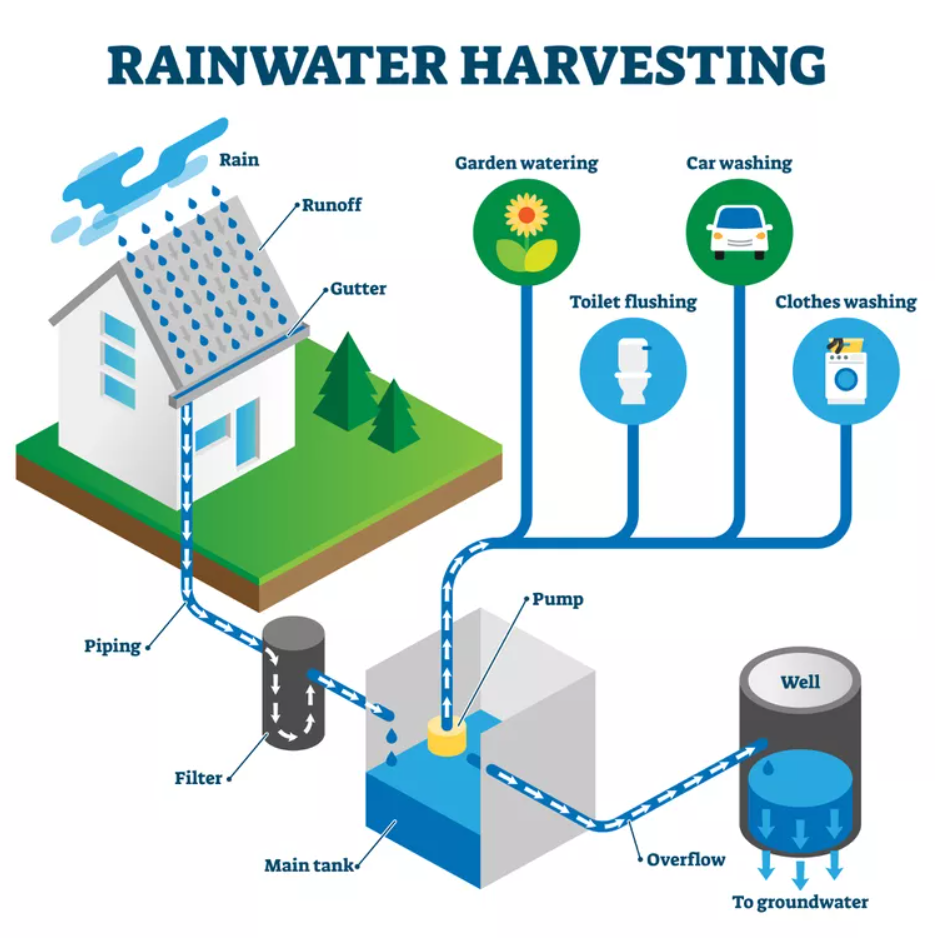

Rainwater harvesting system schematic showing hose roof runoff, underground pipes, filtration, and collection in the tank for household use.
Harvested Rainwater uses
Outdoor Uses:
- Gardens and landscaping
- Swimming pools
- Livestock water or dog washing
- Household duties like washing motor vehicles and cars etc.
- Water features such as bird baths or fountains
- Fire suppression or emergency water
- Cleaning buildings
Indoor Uses:
- Washing machine
- Dishwasher
- Hot tub, bath, or shower
- Toilet Flushing
- Utility sink
Conclusion
The most efficient and advantageous way of water conservation is rainwater gathering. The capacity of a rainwater collection system to meet the demands of the site and its users preferences determines its success. Rainy Filters offers the greatest options for establishing rainwater collection systems. Rainwater harvesting has various advantages and applications; however, harvesting systems must be operational and maintained to ensure water purity. Water must also be washed and filtered before use.
